AutomaticCarWashMachinePriceinIndia
Compare six AACF-V2 touchless variants from ₹10–13 lakh, engineered and manufactured in Coimbatore for machine buyers across India.
Standard variants use PLC + HMI control; INT variants add AI dirt-sensed washing, IoT reports and an integrated management app. Review the published price, footprint, utility requirements and wash-cycle specifications before requesting a written quotation for your site.
Shine. On Time.
AACF-V2 · GANTRY LOCK SEQUENCE · TAP EXPLODE

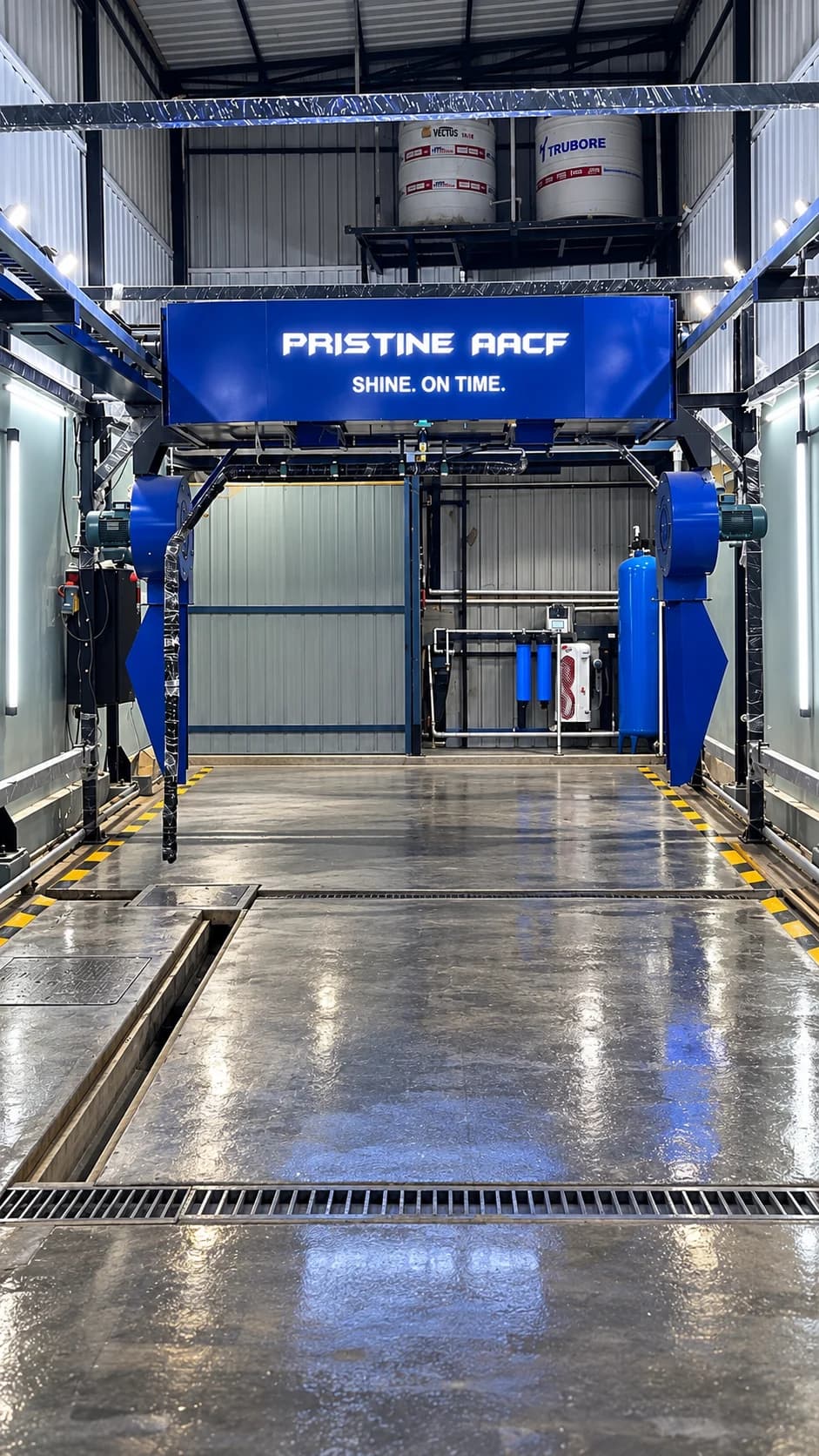

See the AACF-V2 operating at our Gandhipuram facility — 6-minute washes, 4.8 on Google
Live machine demonstration in Coimbatore
PublishedMachineSpecifications
3–6 min
Full wash & dry cycle
130 bar
Operating wash pressure
20–60 L
Published water use per wash
0.2–0.6 kWh
Published electricity use per wash
7.0 × 4.35 × 3.3 m
Compact installation footprint
up to 5.5 × 2.4 × 2.3 m
Maximum washable vehicle size
3D scanning
Vehicle detection by length × width × height
Human detection
Automatic emergency pause for safety
PickYourAACF-V2
Standard variants cover two-dryer and four-dryer builds. INT variants add AI dirt-sensed washing, IoT reporting and an integrated management app. Published list prices run from ₹10–13 lakh.
| Specification | AACF-V2-2D5 | AACF-V2-2D75 | AACF-V2-4D5 | AACF-V2-4D75 | AACF-V2-4D5-INT | AACF-V2-4D75-INT |
|---|---|---|---|---|---|---|
| Dryers | 2 | 2 | 4 | 4 | 4 | 4 |
| Dryer power | 7.5 kW · 13 kPa · 7000 CFM | 11 kW · 17 kPa · 9800 CFM | 15 kW · 26 kPa · 14000 CFM | 22 kW · 34 kPa · 19600 CFM | 15 kW | 22 kW |
| Wash speed | 3–6 min | 3–6 min | 3–6 min | 3–6 min | 3–6 min | 3–6 min |
| Standard input (AC440V 3-phase) | 11 kW | 15 kW | 19 kW | 26 kW | 19 kW | 26 kW |
| Electric consumption | 0.2–0.4 kWh/wash | 0.2–0.4 kWh/wash | 0.3–0.5 kWh/wash | 0.5–0.6 kWh/wash | 0.3–0.5 kWh/wash | 0.5–0.6 kWh/wash |
| Control | PLC + HMI | PLC + HMI | PLC + HMI | PLC + HMI | PLC + HMI + AI + IoT | PLC + HMI + AI + IoT |
| AI dirt-sensed washing | — | — | — | — | ||
| IoT consumption reports & maintenance reminders | — | — | — | — | ||
| Integrated management app (accounting & CRM) | — | — | — | — | ||
| Production reports | — | — | — | — | ||
| List price | ₹10,00,000 | ₹11,00,000 | ₹11,00,000 | ₹12,00,000 | ₹12,00,000 | ₹13,00,000 |
Standard across all variants: 130 bar wash pressure, 7.5 kW water pump, VFD drive, proximity + optical + ultrasonic sensors, automatic under-chassis wash, vehicle guidance system, light / medium / hard wash modes plus manual mode, carbon-steel body with anti-rust powder coating, control room 1.9 × 1.5 × 1.2 m, track length 6.9 m, and dual chemical provision (pre-soak + shampoo, or shampoo + wax).
Confirm the quotation scope: the published list prices do not state whether GST, freight, installation, civil works, utilities, consumables, warranty or AMC are included or excluded. Request a written quotation for the selected variant and site before comparing delivered costs, installation scope or service terms.
HowAACF-V2Compares
| Parameter | PRISTINE AACF-V2 | ATS ELGI Smartstream | Schumak Touchless V2 | Advantage |
|---|---|---|---|---|
| Required space | 7.0 × 4.35 × 3.3 m | 9 × 4.7 × 3.6 m | 6.7 × 4.25 × 3.7 m | Published footprint |
| Max washable vehicle | 5.5 × 2.4 × 2.3 m | 5.2 × 2 × 2.3 m | 4.75 × 1.9 × 1.9 m | Published vehicle limit |
| Operating pressure | 130 bar | 16 bar | 100 bar | Published pressure |
| Connection load | 11–26 kW (by variant) | 12 kW | 12 kW | — |
| Running load (typical draw) | 10 kW (2-dryer) / 17 kW (4-dryer) | NA | NA | — |
| Cycle time | 3–6 min incl. drying | 4 min | 3 min without drying & wheel arch | Includes listed drying cycle |
| Vehicle scanning | L × W × H | Length only | Length only | Three-axis scanning listed |
| Under-chassis wash | Standard | Additional | Additional | Listed as standard equipment |
| Chemical provision | Dual | Single | Single | — |
| Dryer | Dynamic | Static | NA | — |
| Automation | PLC + HMI | PLC | PLC | — |
| Electronics | VFD | Contactor | Contactor | VFD listed |
| Vehicle & human detection | Yes | NA | NA | Detection listed |
| Auto start & stop | Yes | No | No | — |
| AI enabled | INT variants only | NA | NA | — |
| IoT enabled | INT variants only (consumption reports + maintenance reminders) | NA | NA | — |
| Compressor | Not required | Required | Required | — |
| Under-chassis pit | Not required | Required | Required | No pit listed |
| Operators needed | 1 | 3 | 3 | One operator listed |
Competitor specifications shown are from publicly available product literature and may change. Verify current specifications with each manufacturer. Only PRISTINE AACF pricing is published here.
ModelTheNumbersForYourSite
Illustrative assumptions
30
washes / day
₹399
average ticket
₹20
direct cost / wash
₹15,000
labour / month
≈ ₹3,26,100
illustrative monthly contribution
≈ 4 months
illustrative machine-price recovery
The AACF-V2 specification lists 1 operator. Replace every assumption above with your site's expected demand and actual costs.
Illustrative only, before rent, finance, tax, maintenance and downtime. The example is not a quote, forecast or promised return; actual results depend on location, pricing, demand, operating days, utilisation and every site-specific cost.
BuiltForIndianOperators
Made in India
The AACF-V2 series is manufactured in Coimbatore.
Site preparation
The published specification requires no under-chassis pit or compressor; confirm all other site work in writing.
1 operator
The published operating requirement is one operator for the wash bay.
Quote the full scope
Confirm installation, warranty, AMC, spares and service terms for the selected machine and site.
Standard or INT
Choose from four PLC + HMI variants or two INT variants with the listed AI, IoT and reporting features.
Prefer a turnkey business instead of just the machine? Explore the PRISTINE franchise →
Questions,Answered
How much space do I need to install the AACF-V2?
The displayed machine footprint is 7.0 × 4.35 × 3.3 m, with a 6.9 m track length and a 1.9 × 1.5 × 1.2 m control room. Vehicle approach, exit, drainage and utility space must be reviewed for the individual site.
How long does installation take?
Installation timelines depend on site condition and civil and utility readiness. The AACF-V2 specifications state that no under-chassis pit or compressor is required; the installation scope and schedule are confirmed after a site review.
What does the displayed machine price include?
The page displays current machine prices by variant. Ask for a written quotation that itemises GST, freight, installation, civil works, utilities, consumables, warranty and AMC; these items are not represented as included or excluded on this page until confirmed for the selected machine and site.
What is the difference between standard and INT variants?
Standard variants (2D5, 2D75, 4D5, 4D75) run on PLC + HMI control. INT variants (4D5-INT, 4D75-INT) add AI dirt-sensed washing, IoT consumption reports and maintenance reminders, production reports, and an integrated management app with accounting and CRM.
What should I compare before choosing an automatic car wash machine?
Compare the machine price and quoted scope, footprint, vehicle limits, water and power requirements, cycle time, operator requirement, controls, drying configuration, site work and written warranty, AMC and service terms. The AACF-V2 page publishes these specifications for six variants from ₹10–13 lakh.
Is there an Indian alternative to Chinese automatic car wash machines?
Yes. The AACF-V2 is manufactured in Coimbatore and provides touchless high-pressure washing, automatic under-chassis wash, vehicle scanning and PLC plus HMI control. Buyers should compare written delivered-cost, installation, warranty, spare-parts and service terms for every quoted machine.
How do I order or see it running?
Request a callback, call or WhatsApp for a written quote or to request a live demonstration at the operating Gandhipuram, Coimbatore facility. You can also compare buying the machine with the separate franchise route.
